Chrome Solid Brass S-unions Shower Faucet Accessories , Double Male Thread

HN-H14 Chrome Solid Brass S-unions Shower Faucet Accessories , Double Male Thread

Quick Detail:

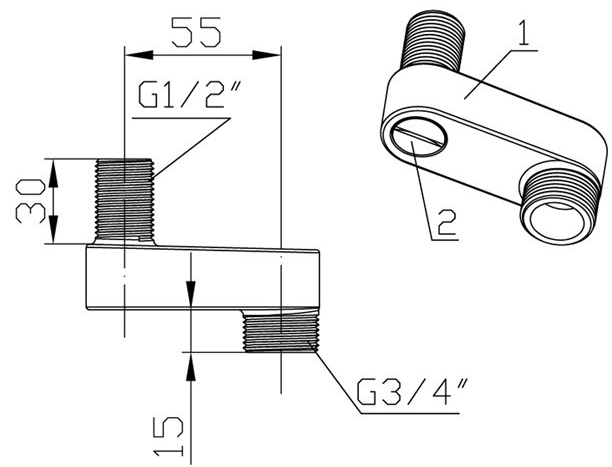

Double external thread design. one side is wall mounted thread G1/2" extension design.(the length of outer thread is 30mm). Suitable for connection to the wall inside embedded pipe, avoid to rebuilding your engineering. the other end thread G3/4" can be connected to bathtub bibcock or shower bibcock.

High purity brass casting body, chrome plated. can adjust the current flow freely.

Service conditions:

1)The working pressure of the products is 0.05MPa-0.9MPa
2)The temperature is no more than 85° when supply hot water.
3)Don't use vapor when supply hot water.
4)The working temperature is more than 0°

Install prosedure:

Firstly, Wind waterproof tape on the G1/2 "thread of the main body (1), then connect to the the corresponding outlet pipe threaded and tightening.

Second, the function of valve core (2): When need to repair the connected products, you can Use a word screwdrivers clockwise rotate the valve core, which can cut off the water from inlet,on the contrary, it can connect to the water.

Competitive advantage:

1. Factory of over 15 years manufacturing faucets experiences.

2. Customized logo is accepted.

3. Trial order for one sample unit is also welcomed

4. OEM / ODM acceptable

5. Could do different grade of soap dispenser Pump as per customer requirement.

6. High effective engineer team and skilled employees.

7. High effective production and delivery on time.
